What is Battery Life in Trail Cameras?

Battery life in trail cameras refers to the operational duration achievable with a single set of batteries, factoring in all usage conditions. This is a critical metric for users deploying cameras in remote or hard-to-reach areas, as frequent battery replacements can be inconvenient and costly. Several variables influence battery life, including:

• Battery Type: Lithium, alkaline, and rechargeable batteries each have distinct performance characteristics.
• Camera Usage Patterns: Frequency of triggers, night vision use, and video recording significantly impact battery consumption.
• Environmental Factors: Temperature extremes, moisture, and exposure to direct sunlight can affect battery efficiency.

Types of Batteries Used in Trail Cameras

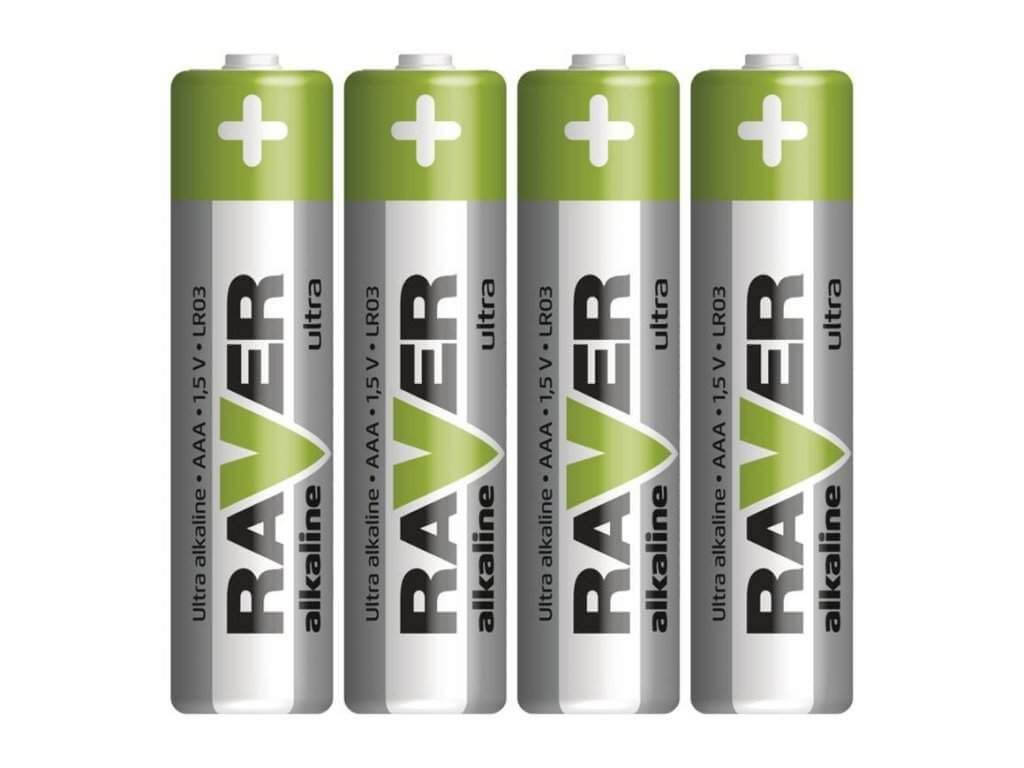

1. Alkaline Batteries

• Voltage: 1.5V per cell initially, decreasing with use.
• Performance: Cost-effective but unreliable in cold temperatures. Prone to leakage and short lifespan under heavy usage.
• Lifespan: 3-4 months on average.

2. Lithium Batteries

• Voltage: 1.6V per cell, stable throughout usage.
• Performance: Best overall performance, withstanding extreme temperatures and providing the longest operational life.
• Lifespan: Up to 12 months or more, depending on camera settings.

3. Nickel Metal Hydride (NiMH) Rechargeable Batteries

• Voltage: 1.2V per cell, consistent output after initial charge drop.
• Performance: Eco-friendly and suitable for cold weather, but limited compatibility with some cameras.
• Lifespan: 3-5 years with proper care, though frequent recharging is required.

4. Lithium-Ion (Li-ion) Rechargeable Batteries

• Voltage: Typically regulated to 1.5V per cell.
• Performance: High energy density with consistent output, but challenging to gauge remaining capacity.
• Lifespan: Hundreds of cycles under optimal conditions.

Factors Influencing Battery Life

1. Camera Settings

• Trigger Speed and Sensitivity: Higher sensitivity increases the frequency of captures, consuming more power.
• Night Vision Use: Infrared (IR) or flash modes for night photography demand more energy.
• Video Recording: Consumes significantly more power compared to still images.

2. Environmental Conditions

• Temperature: Cold reduces battery efficiency, while excessive heat can lead to overheating.
• Moisture: Can corrode battery terminals and cause power drains.

3. Battery Chemistry

• Different battery chemistries react differently to usage conditions. For instance, lithium batteries excel in temperature extremes, while alkaline batteries struggle.

Example Scenarios

• Wildlife Observation: Researchers using lithium batteries report up to 14 months of operation, capturing 300 images weekly.
• Security Applications: For surveillance, NiMH rechargeable batteries provide eco-friendly alternatives with long-term cost savings.

Battery Life Calculation Methodology

Battery life is typically estimated using:

1. Resting Power Consumption: Energy used in standby mode.
2. Photo and Video Consumption: Power drawn during captures, especially with night vision.
3. Shutdown Voltage: Minimum voltage required for the camera to function.

Understanding these factors allows users to select the right batteries and settings to optimize their trail camera deployment.

By paying attention to battery types, camera settings, and environmental conditions, users can significantly enhance the operational efficiency of their trail cameras.
