Glossary Article: Range Control in Trail Cameras

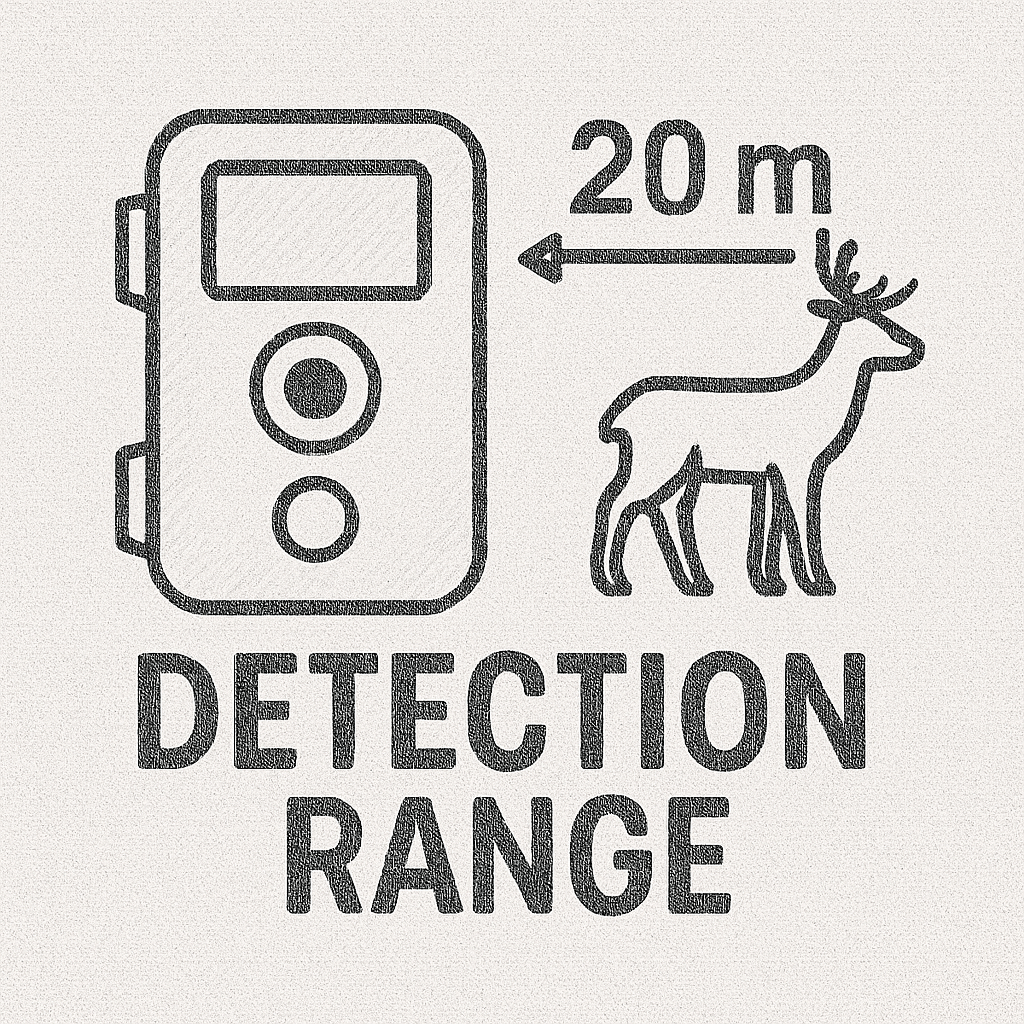

What is Range Control?

Range Control is a crucial feature in trail cameras and motion detection devices that allows users to modify and manage the distance over which the device detects motion and triggers a response, such as capturing a photo or recording a video. This setting helps ensure that the device captures relevant motion events while minimizing false triggers caused by irrelevant movements or distant objects.

In technical terms, Range Control adjusts the sensitivity of the Passive Infrared (PIR) sensor or other motion detection mechanisms. By altering the detection range, users can fine-tune the camera’s performance in various environments, such as dense forests, open fields, or urban settings. This adaptability makes Range Control an essential feature for applications like wildlife monitoring, security surveillance, and property management.

How is Range Control Used?

Range Control is typically accessed through a camera’s settings menu, either directly on the camera or via a connected app, especially in wireless or cellular trail camera models. Adjusting the detection range allows customization for specific scenarios, such as avoiding false triggers or capturing motion over longer distances.

Steps to Adjust Range Control:

1. Access the Settings Menu:
   • For non-cellular trail cameras, use the built-in interface (buttons and screen).
   • For cellular and wireless trail cameras, use the companion app (e.g., Browning’s Strike Force Wireless app).
2. Navigate to Detection Range Settings:
   • Look for options like “Detection Range,” “Motion Sensitivity,” or “PIR Sensitivity.”
3. Adjust the Sensitivity:
   • Increase Range: Extend the detection zone to capture motion farther away. Ideal for open landscapes like fields or savannahs.
   • Decrease Range: Limit motion detection to closer distances. Useful in dense environments like forests or areas prone to false triggers.
4. Test the Settings:
   • Walk through the detection zone at various distances to confirm the adjustments.

Technical Details of Range Control

Range Control primarily operates through the adjustment of the PIR sensor, which detects motion by sensing changes in heat signatures across the detection zone. Below are the key technical factors influencing Range Control:

1. PIR Sensor Sensitivity:

• PIR sensors detect infrared radiation emitted by objects. Adjusting sensitivity can modify how far the sensor responds to motion.
• Higher sensitivity extends the detection range but might cause more false triggers from small animals or environmental factors like wind or rain.

2. Field of View (FOV):

• The lens angle determines the field of view. Wider FOVs allow for greater coverage, while narrower FOVs focus on specific areas.
• Range Control works in coordination with FOV to ensure the camera detects motion within the desired area.

3. Environmental Factors:

• Temperature: PIR sensors are more effective when there’s a significant temperature difference between the moving object and its surroundings. Detection is better on cold days when a warm-bodied animal crosses the zone.
• Obstructions: Vegetation, terrain, or weather conditions (e.g., fog) can affect the detection range.

4. Detection Range Testing:

• Manufacturers like TrailCamPro test trail cameras under controlled conditions to measure their detection range.
• Testing involves using a heat source to simulate animal motion and measuring the maximum detection distance under optimal conditions.

Examples of Range Control in Use

Example 1: Wildlife Monitoring in Open Fields

A trail camera placed at the edge of a large field can monitor deer activity. Increasing the detection range to 80-100 feet enables the camera to capture animals grazing further away. This configuration ensures comprehensive coverage of the area, particularly for larger animals.

Example 2: Dense Forest Monitoring

In a forest with dense vegetation, a trail camera might detect swaying branches or small animals unnecessarily. Reducing the detection range to 30-40 feet can help focus on capturing larger wildlife moving closer to the camera, minimizing false triggers.

Example 3: Home Security

A homeowner using a trail camera for security can limit the detection range to 20 feet, ensuring the camera focuses on the immediate vicinity of the property. This setup avoids triggers from distant cars or pedestrians.

Use Cases for Range Control

1. Hunting and Scouting

• During the scouting phase, a wide detection range helps identify patterns of movement in large areas.
• Narrowing the detection range during hunting season ensures the camera captures relevant movement near food plots or mineral sites.

2. Wildlife Research

• Researchers studying specific species or behavior can benefit from precise range control. For example:
  • Observing bird species might require a shorter detection range for close monitoring of nests.
  • Monitoring large mammals in a savanna might demand maximum range settings for broader coverage.

3. Security Surveillance

• Homeowners and businesses can adjust detection range settings to focus on specific areas, avoiding unnecessary alerts from public spaces or roads.

4. Urban Applications

• In urban environments, adjustable range control helps monitor gardens, backyards, or other small spaces, preventing triggers from nearby traffic or neighbors.

Troubleshooting Range Control Issues

Common Problems and Solutions:

1. Camera Fails to Detect Motion at Expected Range:

   • Cause: Sensitivity set too low or environmental interference.
   • Solution: Increase sensitivity or reposition the camera to reduce obstructions.

2. Excessive False Triggers:

   • Cause: Sensitivity set too high or environmental factors like wind or moving branches.
   • Solution: Decrease sensitivity, adjust detection zones, or reposition the camera.

3. Camera Detects Motion Outside Desired Area:

   • Cause: Detection range exceeds intended coverage area.
   • Solution: Reduce the detection range and test the zone by walking through it.

4. Inconsistent Detection:

   • Cause: Temperature fluctuations or improper sensor alignment.
   • Solution: Ensure stable camera positioning and test in various conditions.

Key Features of Advanced Range Control Systems

Modern trail cameras often include advanced Range Control features, such as:

• Adjustable Detection Zones: Users can create custom zones within the field of view, focusing on specific areas while ignoring others.
• Smart Detection Modes: Some cameras, like Browning’s Defender Wireless, use Smart IR Video to adapt recording times based on continuous motion.
• Dynamic Sensitivity: Cameras automatically adjust sensitivity based on environmental conditions, such as temperature or lighting.

Conclusion

Range Control is an essential feature that enhances the functionality and versatility of trail cameras. Whether for wildlife monitoring, security, or research, the ability to adjust the detection range ensures optimal performance tailored to your needs. By understanding the technical principles and practical applications of Range Control, users can maximize the effectiveness of their trail cameras and capture the most relevant data or footage.
