PIR Angle Glossary: Understanding the Width of the Detection Field in Trail Cameras

Overview of PIR Angle

PIR Angle refers to the horizontal and vertical width of the detection field covered by a Passive Infrared (PIR) sensor. This angle determines the area in which a trail camera can detect motion by sensing infrared radiation emitted by objects such as animals or humans. PIR sensors are integral to trail camera functionality and are highly effective in detecting changes in infrared radiation within their detection zones.

A wider PIR Angle provides a broader detection area, making it ideal for open spaces, while a narrower angle is more suitable for focused, targeted surveillance. This specification is crucial for wildlife monitoring, hunting, and security applications.

What Is PIR Angle?

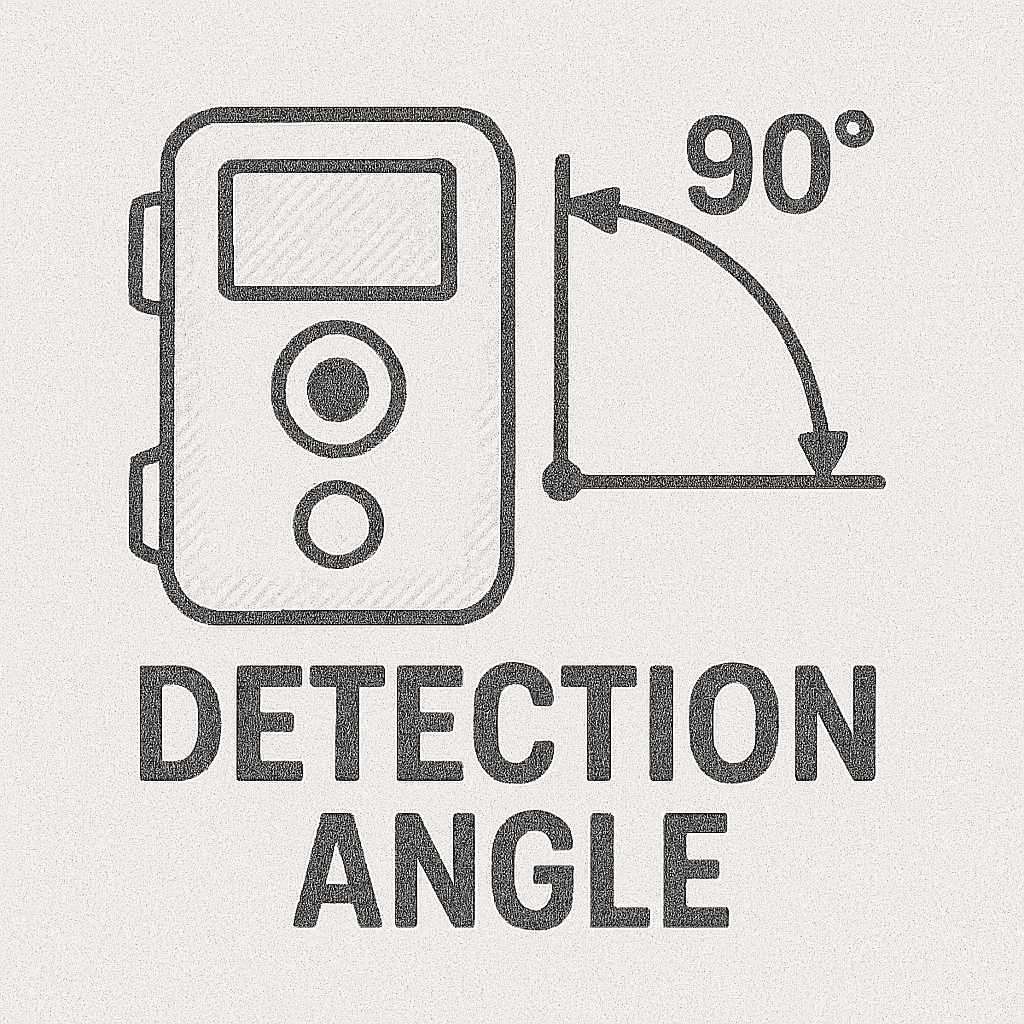

The PIR Angle is the scope or width of the detection zone projected by a PIR sensor. It is measured in degrees and can range from narrow fields (e.g., 10°) to wide-angle fields (e.g., 120°).

Key Considerations:

1. Field Coverage: A wide PIR Angle allows cameras to monitor larger areas, while a narrow angle focuses on specific zones.
2. Detection Accuracy: Wide angles may increase the risk of false triggers (e.g., wind-blown vegetation), whereas narrow angles provide more precise detection but require accurate placement.

How Does PIR Angle Work?

To understand PIR Angle, it’s essential to look into the mechanics of PIR sensors and their associated components, such as Fresnel lenses.

Core Functionality:

• PIR sensors detect infrared radiation (heat) emitted or reflected by objects within their range.
• They consist of two sensing elements. When an object moves across the detection zone, the infrared radiation it emits disrupts the balance between the two elements, triggering the sensor.

Role of Fresnel Lens:

The Fresnel lens, often a curved black plastic cover on trail cameras, enhances PIR sensor capabilities by:

• Focusing and distributing infrared light to the sensor.
• Dividing the field of view into multiple detection zones for better coverage.
• Determining the PIR Angle through its design. Complex lens designs yield wider angles and more intricate detection zones.

How Is PIR Angle Used in Trail Cameras?

The PIR Angle of a trail camera significantly impacts its ability to capture wildlife activity or monitor specific zones.

Examples of Application:

1. Wide PIR Angle (e.g., 48° or more):

   • Suitable for open fields, food plots, or areas with high wildlife traffic.
   • Captures animals entering the frame from various directions.
   • Example: A camera set along a forest edge captures deer crossing a field.

2. Narrow PIR Angle (e.g., 10° to 20°):

   • Best for targeting specific trails, bait sites, or corridors.
   • Example: A camera on a game trail captures animals walking directly in the path, reducing false triggers.

Technical Details of PIR Angle

Understanding the technical aspects of PIR Angle helps in selecting and setting up the right trail camera.

Horizontal vs. Vertical PIR Angles:

• Horizontal PIR Angle: Determines the side-to-side detection width.
• Vertical PIR Angle: Determines the top-to-bottom detection height.
• Horizontal angles are generally broader, as animals often move laterally.

PIR Angle and Detection Range:

• Detection Range: The maximum distance a PIR sensor can detect movement, often specified in feet or meters.
• Wider PIR Angles can reduce detection range, whereas narrower angles often extend it.

PIR Angle and Trigger Speed:

A fast trigger speed is crucial for wide PIR Angles to capture subjects in the center of the frame. Slow trigger speeds may cause subjects to appear on the edge or miss them entirely.

Adjustable Settings for PIR Angle in Trail Cameras

Modern trail cameras allow users to adjust PIR settings to optimize detection zones based on specific needs.

Common Adjustable Features:

1. Sensitivity Levels:
   • High sensitivity captures smaller and more distant animals but may increase false triggers.
   • Low sensitivity reduces false triggers and focuses on larger animals.
2. Primary vs. Secondary PIR Sensors:
   • Some cameras feature multiple PIR sensors (e.g., side sensors) that can be toggled on/off to adjust detection areas.
   • Example: Disabling side sensors narrows the PIR Angle.
3. Trigger Interval:
   • Controls the time between consecutive activations, preventing redundant images.

Best Practices for Using PIR Angle in Trail Cameras

To maximize the effectiveness of a trail camera’s PIR Angle, follow these recommendations:

1. Placement:

   • Position cameras at a height of 2–3 meters for optimal coverage.
   • Avoid areas with direct sunlight or heat sources to prevent false triggers.

2. Field of View Alignment:

   • Ensure the PIR Angle aligns with the camera’s field of view (FOV) for accurate detection and image capture.

3. Environmental Considerations:

   • Use narrow angles in dense forests to focus on trails.
   • Opt for wide angles in open areas for broader coverage.

4. Testing and Adjustments:

   • Experiment with placement and settings to find the best configuration for your environment.

Conclusion

Understanding and leveraging PIR Angle is essential for maximizing trail camera performance. Whether monitoring wildlife, scouting for hunting, or enhancing security, choosing the right PIR Angle and settings ensures effective surveillance and data collection. By combining technical knowledge with practical adjustments, users can optimize their trail camera’s capabilities and achieve better results in the field.
