Glossary: Motion Detection Delay in Trail Cameras

What Is Motion Detection Delay?

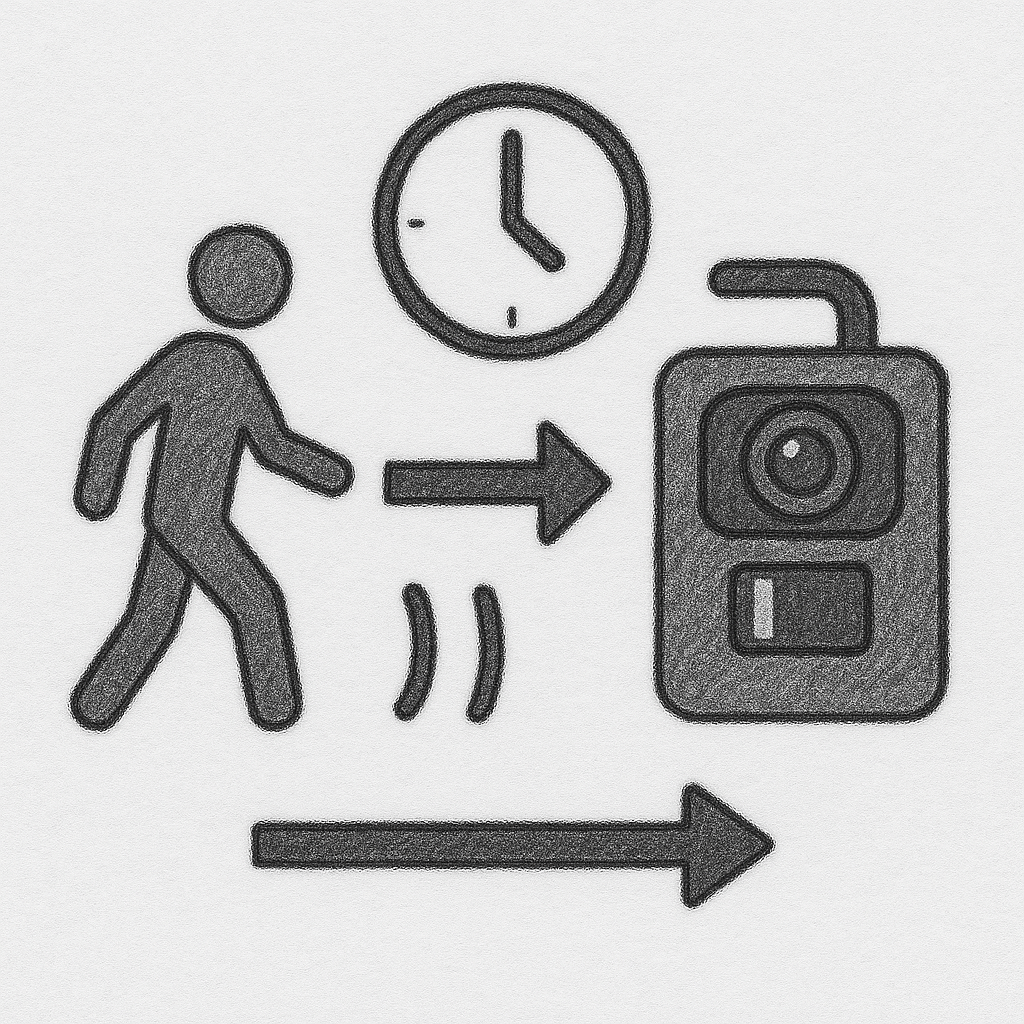

Motion Detection Delay, also referred to as Detection Delay, is the time interval that occurs between a trail camera’s motion sensor detecting movement and the device capturing an image or recording a video. This delay can range from as little as 0.1 seconds to several seconds depending on the camera model and its configuration. Closely related to this is the camera’s trigger speed, which determines how quickly the camera responds to motion detection. A trigger speed of 0.1 seconds ensures immediate capturing, while a slower trigger speed of 2 seconds increases the chance of missing the subject.

Another essential concept tied to Detection Delay is Recovery Time—the time it takes for the camera to reset itself and prepare for the next detection and capture. These two features together play a significant role in the effectiveness of the camera, influencing how well it captures wildlife activity without missing critical moments.

How Does It Work?

Trail cameras rely on Passive Infrared (PIR) sensors to detect movement. The PIR sensor reacts to changes in infrared radiation, which are often caused by the body heat of animals moving across the sensor’s field of view. When movement is detected, the sensor sends a signal to the camera’s processor, which then triggers the camera to capture an image or start recording a video. The Detection Delay is the gap between the motion being detected and the actual image or video being recorded.

Example Scenarios:

• Trigger speed of 0.1 seconds: The camera captures an image almost instantly upon detecting motion, ensuring the subject is captured in-frame.
• Trigger speed of 2 seconds: The subject may have already left the frame, resulting in a missed opportunity.

This makes Detection Delay a critical feature for capturing fast-moving wildlife, supporting accurate data collection for research, and avoiding missed opportunities for hunters or photographers.

Why Is Detection Delay Important?

Although it may seem like a minor technical detail, Detection Delay significantly affects the performance of trail cameras. Here’s why:

1. Capturing Fast-Moving Animals

Fast creatures like deer, foxes, or birds can move through a camera’s field of view in just a few seconds. A shorter detection delay ensures the subject is photographed while still within the frame. For instance, a delay of 2 seconds may result in only capturing the tip of an animal’s tail or missing it entirely.

2. Reducing Missed Opportunities

Wildlife enthusiasts and researchers often rely on trail cameras to document fleeting moments, such as predators stalking prey or rare animal sightings. A long detection delay can mean these opportunities are lost forever, leading to incomplete data or missed memories.

3. Balancing Battery and Storage Usage

Shorter delays often result in more frequent captures, which can drain the battery and fill storage faster. Optimizing detection delay involves finding the balance between capturing enough activity and conserving battery life and memory.

4. Improving Data Accuracy

For researchers, accuracy is paramount. Long detection delays can result in fragmented or incomplete behavioral data, which may compromise the validity of a study. A shorter delay ensures the camera captures comprehensive sequences of animal behavior.

Factors That Influence Detection Delay

Various factors influence a trail camera’s detection delay, both internal and external. Understanding these can help users optimize their camera settings or choose the right model.

1. Sensor Quality

High-quality PIR sensors detect motion quickly and with precision, significantly reducing detection delays. Cameras with advanced PIR sensors are often more expensive, but their superior performance is worth the investment, especially in environments with fast-moving wildlife.

2. Processing Speed

A camera’s internal processor determines how quickly it can interpret the motion signal and trigger the capture. Cameras with faster processors exhibit shorter detection delays.

3. Environmental Conditions

• Temperature: Extreme cold can slow down the electronics inside a camera, leading to increased detection delays. Excessive heat can also cause performance issues.
• Vegetation: Dense foliage or obstructed views can interfere with motion detection, potentially delaying response times.

4. Settings and Configuration

Trail cameras often allow users to adjust key settings:

• Higher sensitivity settings: Capture even small or subtle movements but risk false triggers (e.g., moving leaves or wind).
• Lower sensitivity settings: Reduce false triggers but may miss smaller or faster subjects.

5. Camera Placement

Strategic placement can help mitigate detection delay. Positioning the camera to face trails directly or targeting bait stations ensures that animals stay in the frame longer, making it easier to capture them even with minor delays.

Examples and Use Cases

Example 1: Wildlife Research

Researchers studying nocturnal mammals place trail cameras with 0.5-second detection delays in forested areas. This ensures that even quick movements, like a fox darting across the frame, are captured accurately.

Example 2: Hunting

Hunters monitoring game trails often prefer cameras with trigger speeds of 0.3 seconds or less. Slower cameras risk only capturing partial images of game animals, such as the hind legs of a deer.

Example 3: Nature Photography

Photographers aiming for dynamic wildlife shots, such as birds feeding their young, rely on cameras with rapid detection speeds of less than 0.2 seconds. This ensures they do not miss fleeting moments, like a bird taking flight.

Optimizing Detection Delay

To maximize your trail camera’s performance, follow these practical tips for optimizing Detection Delay:

1. Choose a Camera with Fast Detection Speed

   • Select models with trigger speeds under 0.5 seconds for wildlife or hunting applications.
   • Modern cameras often boast speeds as low as 0.1 seconds, ideal for capturing dynamic action.

2. Adjust Sensitivity Settings

   • Use high sensitivity for areas with minimal activity or for monitoring smaller animals.
   • Opt for low sensitivity in areas prone to frequent movement, such as windy fields.

3. Strategic Camera Placement

   • Place the camera directly along trails or near feeding stations to maximize the time animals remain in the frame.

4. Use High-Performance Components

   • Use Class 10 or U3 SD cards for faster data writing.
   • Employ lithium-ion or rechargeable batteries to ensure consistent performance.

5. Maintain the Camera Regularly

   • Clean the PIR sensor and lens to prevent obstructions like dirt or debris, which can increase detection delays.

Technical Details of Detection Delay

FAQ: Frequently Asked Questions

Q1: What is the ideal detection delay for wildlife photography?

For fast-moving animals, a detection delay of less than 0.5 seconds is recommended to avoid missing the subject.

Q2: Does detection delay affect video recording?

Yes, detection delay determines how soon the video begins recording after motion is detected.

Q3: Can environmental factors like temperature impact detection delay?

Yes, extreme cold or heat can slow down a camera’s electronics, increasing delays.

Q4: How can I test detection delay on my camera?

Set up the camera in a controlled environment and measure its response time to movement using a stopwatch.

Q5: Is a shorter detection delay always better?

Not necessarily. While shorter delays are better for dynamic environments, they may lead to unnecessary captures in high-activity areas, draining the battery and filling storage.

Conclusion

Understanding and optimizing Detection Delay is crucial for making the most out of your trail camera. Whether you’re a researcher, hunter, or wildlife enthusiast, knowing how to adjust settings and choose the right equipment ensures you never miss a moment worth capturing.
