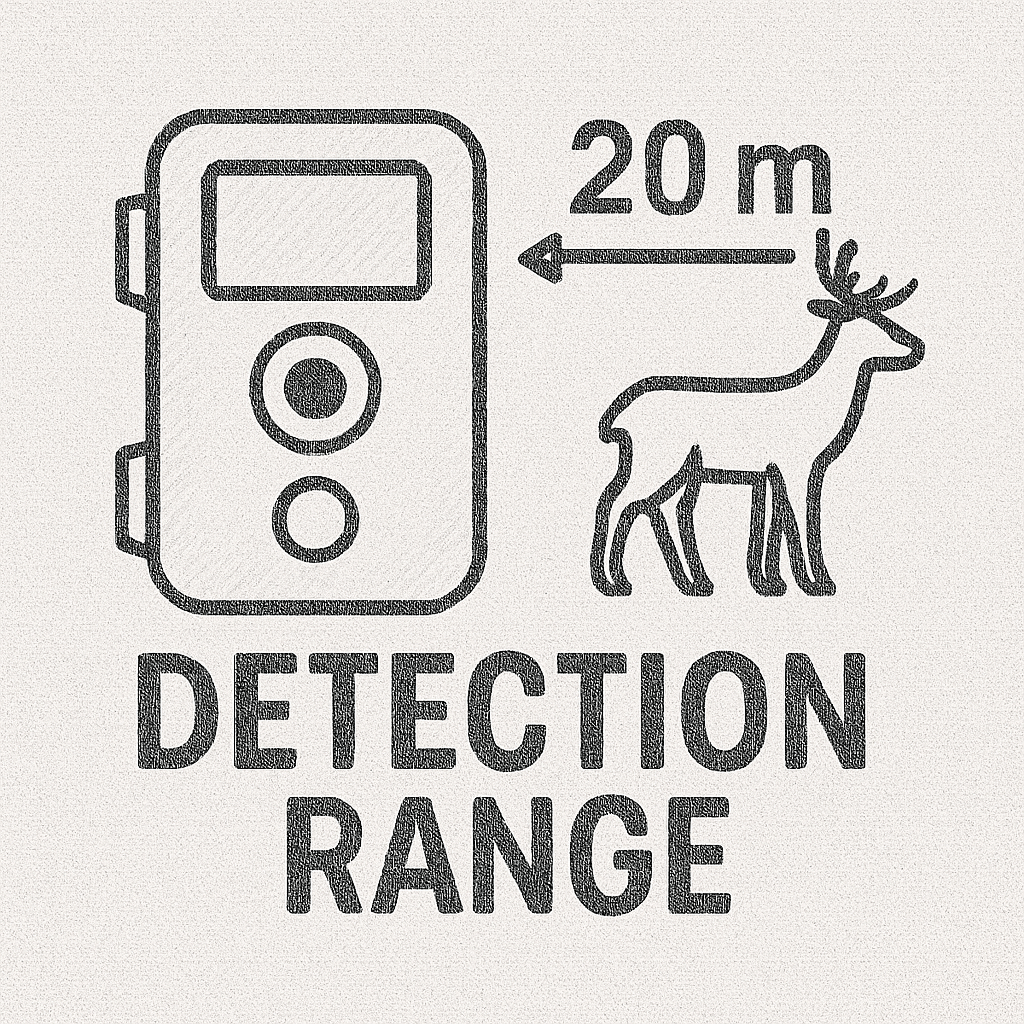

What is Detection Range?

Detection Range refers to the maximum distance and area that a trail camera’s motion detection system can identify movement and trigger image or video capture. It is defined by two key components:

• Distance: How far the camera can detect motion.
• Angle: The width of the area covered by the detection zone.

For instance, a trail camera with a detection range of 100 feet and a detection angle of 42 degrees can effectively monitor an area of approximately 3,663 square feet. This specification is crucial for assessing the camera’s capability in various applications, from wildlife observation to security surveillance.

Key Applications of Detection Range

1. Wildlife Monitoring

• Purpose: Observing animals in their natural habitats without interference.
• Significance of Detection Range: Longer ranges increase the probability of capturing elusive wildlife, particularly in open or forested areas.
• Example: The Stealth Cam Deceptor, with a 120-foot detection range, is highly effective for monitoring large terrains.

2. Hunting

• Purpose: Tracking animal movements to plan hunting strategies.
• Importance: A longer detection range allows hunters to monitor game trails and feeders more effectively, reducing the need for multiple cameras.
• Example: The Spartan Eclipse provides a wide detection angle of 71.3 degrees, making it ideal for monitoring multiple entry points.

3. Security

• Purpose: Protecting property, construction sites, or other areas from unauthorized access.
• Usefulness: Extended detection ranges enable early detection of intruders, covering wider areas with minimal blind spots.
• Example: The Tactacam Defend Security Camera offers reliable detection for remote security applications.

4. Research

• Purpose: Collecting ecological data or studying animal migration.
• Practicality: Cameras with customizable detection ranges, like the Reconyx Hyperfire 2 Cellular, allow researchers to adapt to specific study requirements.

Technical Aspects of Detection Range

1. Passive Infrared (PIR) Sensor

• Function: Detects motion by identifying changes in infrared radiation caused by moving objects with a temperature contrast to the environment.
• Importance: The PIR sensor determines the sensitivity and range of motion detection.

2. Fresnel Lens

• Role: Amplifies and focuses infrared radiation onto the PIR sensor, enhancing detection precision.
• Configurations: Narrow angles focus on distant detection, while wide angles improve coverage closer to the camera.

3. Environmental Factors

• Temperature: Detection is more effective when there’s a significant temperature difference between the subject and its surroundings.
• Obstructions: Vegetation or barriers can limit the effectiveness of the PIR sensor.
• Weather Conditions: Rain, fog, or snow can reduce the camera’s detection efficiency.

4. Trigger Speed and Recovery Time

• Trigger Speed: Determines how quickly the camera responds to detected motion.
• Recovery Time: Affects how soon the camera can capture subsequent images after the first shot.

Notable Trail Cameras with Superior Detection Ranges

Tips for Optimizing Detection Range

1. Positioning: Mount the camera at an appropriate height and angle for the target area.
2. Sensitivity Settings: Adjust the PIR sensitivity to match environmental conditions.
3. Testing: Conduct field tests to ensure the camera performs optimally in the designated location.
4. Maintenance: Regularly clean the camera lens and PIR sensor to prevent obstructions.

Detection range is a critical factor in trail camera performance. Understanding its components and applications allows users to select the best camera for their needs, ensuring efficient and reliable monitoring in any scenario. Explore our collection of trail cameras to find the one that fits your requirements!
