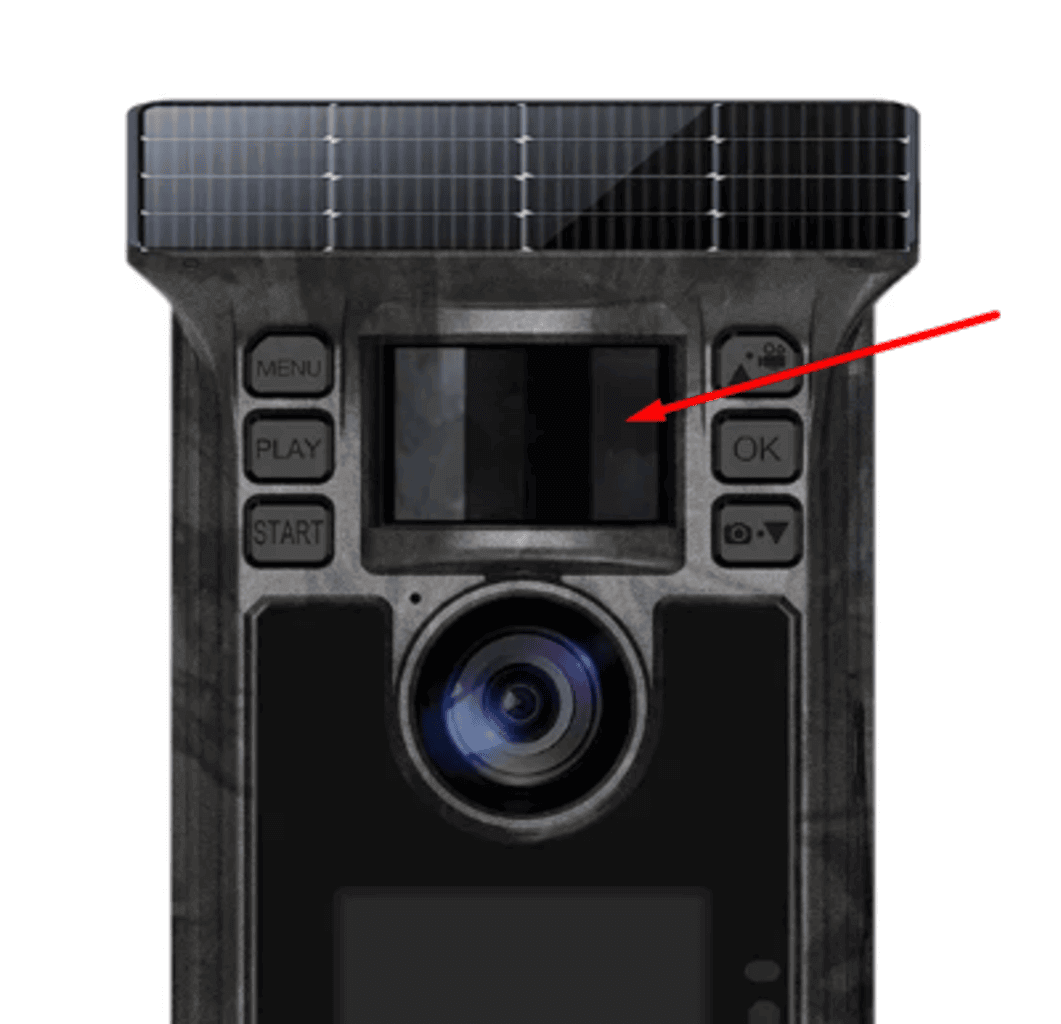

What is an Active Infrared Sensor?

An Active Infrared Sensor (AIR) is a detection device that emits infrared light to identify and track motion. It operates by sending a continuous infrared beam and monitoring for interruptions caused by moving objects or animals within its detection zone. Unlike Passive Infrared (PIR) sensors that detect changes in ambient infrared radiation, active sensors rely on a consistent light source and a receiver to process interruptions.

How Active Infrared Sensors Work

Active Infrared Sensors in trail cameras function through the following steps:

1. Emission of Infrared Light: A built-in infrared LED or emitter projects a beam of light in a specific direction.
2. Detection Mechanism: A receiver, often a photodiode, monitors the beam for interruptions or reflections.
3. Trigger Activation: When the beam is broken by an object or animal, the sensor sends a signal to the trail camera to capture photo or video footage.

Key Components:

• Emitter: Infrared LEDs that emit light at wavelengths (commonly 850nm or 940nm) invisible to the human eye.
• Receiver: Photodiodes or equivalent sensors that detect the presence or absence of the infrared beam.
• Processor: Converts the detected signal into a trigger for the camera.

Applications of Active Infrared Sensors

Wildlife Monitoring

Active Infrared Sensors are particularly useful for research and monitoring in controlled settings, such as:

• Feeding Stations: Detecting animals at specific feeding areas.
• Water Sources: Monitoring wildlife activity near water bodies.

Security and Surveillance

• Perimeter Monitoring: Securing boundaries or specific entry points against unauthorized access.
• Vandalism Prevention: Detecting tampering attempts in urban or remote installations.

Industrial Uses

• Automated Systems: Employed in automatic doors and equipment that rely on beam interruption to initiate actions.

Advantages of Active Infrared Sensors

• Precision: Provides highly accurate detection within a narrowly defined zone.
• Reduced False Triggers: Less susceptible to environmental factors like temperature changes or moving foliage compared to PIR sensors.
• Customizable Sensitivity: Adjustable detection parameters for specific use cases.

Limitations of Active Infrared Sensors

• Power Consumption: Continuous emission of infrared light leads to higher energy usage, reducing battery life.
• Clear Detection Path Required: Performance can be compromised by obstacles like vegetation or debris in the beam’s path.
• Cost: Generally more expensive than passive sensor alternatives.

Comparison with Passive Infrared Sensors

Technical Specifications

Use Cases in Trail Cameras

• Customized Detection Zones: Ideal for monitoring specific paths or points of interest.
• Controlled Wildlife Studies: Effective in scenarios where precise detection is critical, such as species-specific research.

Conclusion

Active Infrared Sensors provide an advanced motion detection method for trail cameras, particularly advantageous in controlled environments requiring precise detection. While they have limitations, such as higher power consumption and the need for clear detection paths, their precision and reliability make them valuable in specialized applications. Proper calibration of sensitivity and alignment can significantly enhance their effectiveness in both wildlife monitoring and security setups.
